HSE Microwave & PIR High-Bay Sensor Heads, 12 m (pack of 5)

$69.99

12 V DC microwave and PIR sensor heads for high-bay lights with 0–10 V dimming, daylight threshold and dusk/dawn function; the -1 versions have an audio jack for UFO high bays.

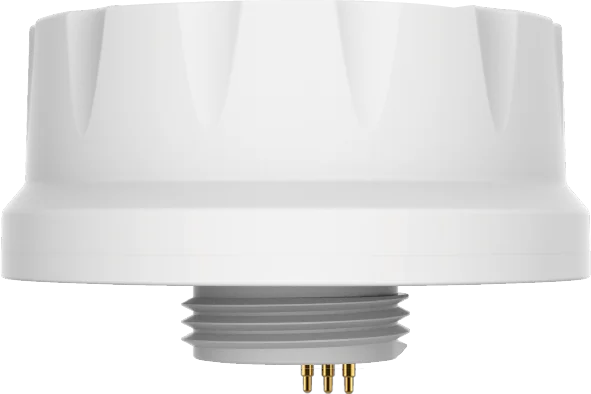

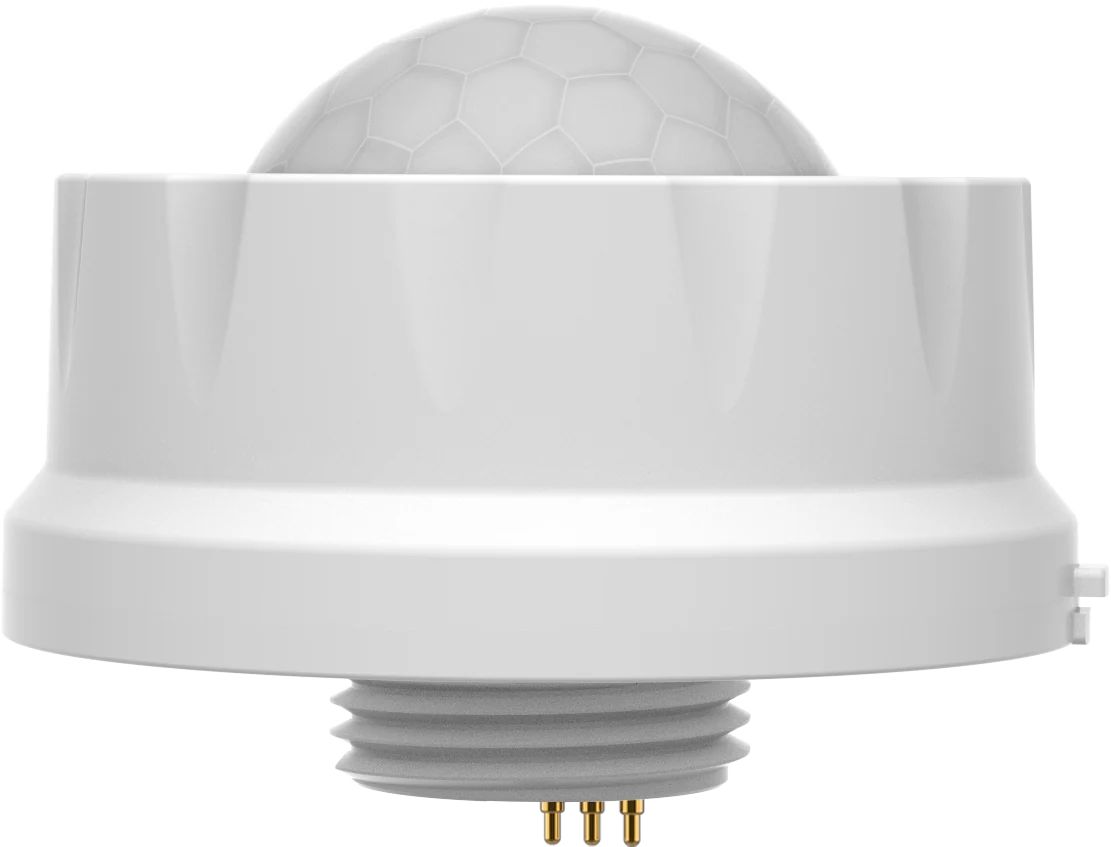

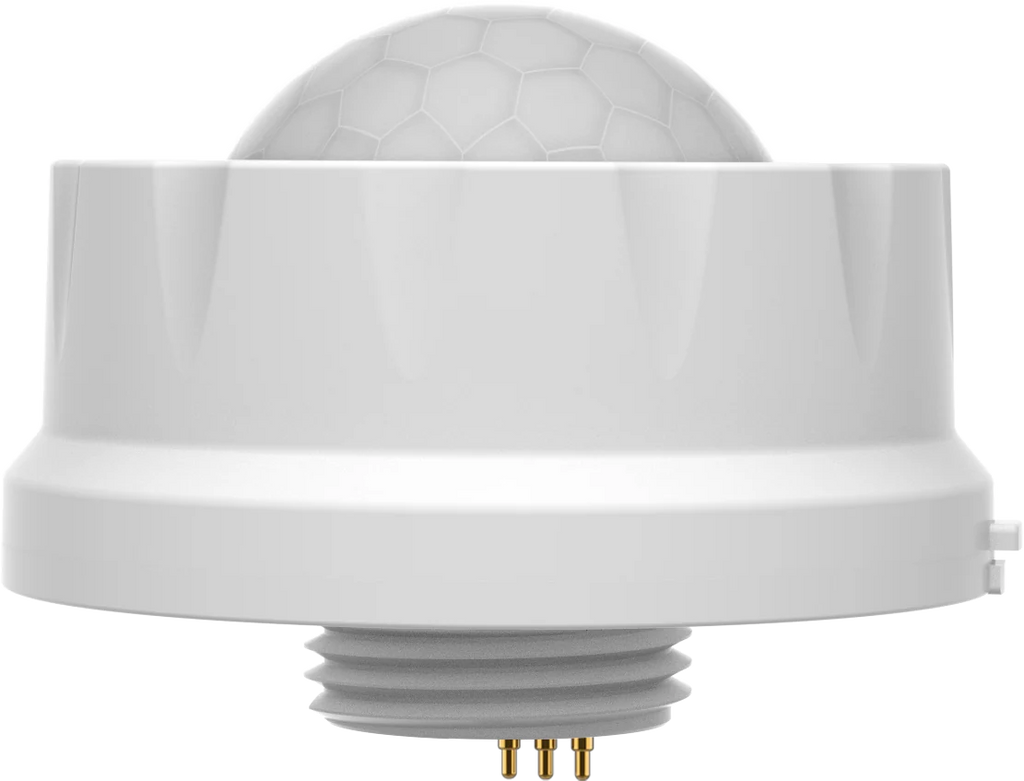

Microwave (HD07VR-MH, -M, -MH-1) and PIR (HD07VR-PH, -P, -PH-1) sensor heads, 12 V DC powered, with remote control.
Bi-level dimming, daylight threshold and dusk/dawn function.
Dusk/dawn function: after installation in the fixture the sensor tells artificial light from natural light and turns the light off when ambient brightness exceeds the preset lux level.
HD07VR-MH/-M and -PH/-P mount on the HD07VR receptacle options (Type A, A-3, A-3-1, B, C, D); the -1 versions have an audio jack, suitable for UFO high-bay applications.
cURus Recognized Component (E529048).
HD07VR-A: photocell and daylight-harvesting sensor head without motion detection, 12 V DC, set with the HD05R remote.

Key specifications

Input	12 V DC (voltage range 10–15 V DC)
Sensor	Microwave (MH) · PIR (PH)
Max height	12 m (39 ft); HD07VR-M / -P: 6 m (19 ft)
Detection range	≥ 3 m (9 ft)
Dimming	0–10 V
Control	HD06R or HD05R LCD remote

Electrical

Input voltage	12 V DC (voltage range 10–15 V DC)
Input current	< 30 mA
Standby consumption	< 30 mA
Dimming	0–10 V

Detection

Sensor type	Microwave: HD07VR-MH, -M, -MH-1 · PIR: HD07VR-PH, -P, -PH-1
Frequency (microwave)	5.8 GHz ± 75 MHz
Microwave power	< 0.3 mW
Infrared wavelength (PIR)	5–14 µm
Installation height	12 m (39 ft) max. · HD07VR-M and HD07VR-P: 6 m (19 ft) max.
Detection distance	≥ 3 m (9 ft)

Settings — regular version

Control	LCD remote, purchased separately: HD06R (HD07VR-MH/-M, -PH/-P sheets) · HD05R (HD07VR-MH-1, -PH-1 sheets)
Detection area	25% / 50% / 75% / 100%
Hold time	5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min
Daylight threshold	Disable / 2 / 10 / 30 / 50 / 80 / 120 lux
Standby dimming level	10% / 20% / 30% / 50%
Standby period	0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞
Dusk/dawn (photocell)	Daylight threshold 30 / 50 / 80 / 120 lux, standby period +∞, standby dimming level 10% / 20% / 30%
Default program	Detection area 100% · hold time 5 s · daylight threshold disable · standby period 0 s · standby dimming level 10%

Environment

Operating temperature	−40 °C to +60 °C (HD07VR-MH, -M, -MH-1, -PH-1) · −20 °C to +60 °C (HD07VR-PH, -P)
Storage temperature	−40 °C to +80 °C
Humidity	85% (non-condensation)
IP rating	IP65 (HD07VR-MH, -M, -MH-1, -PH, -P) · IP20 (HD07VR-PH-1)

Mechanical

Connection	HD07VR-MH/-M, -PH/-P: HD07VR receptacle Type A, A-3, A-3-1, B, C or D · HD07VR-MH-1, -PH-1: audio jack
Wiring	Type A / B / C receptacles — 12 V DC input: black & white wire · DIM+: purple wire · DIM−: pink wire · Type A-3 / A-3-1: yellow, pink and purple wires
