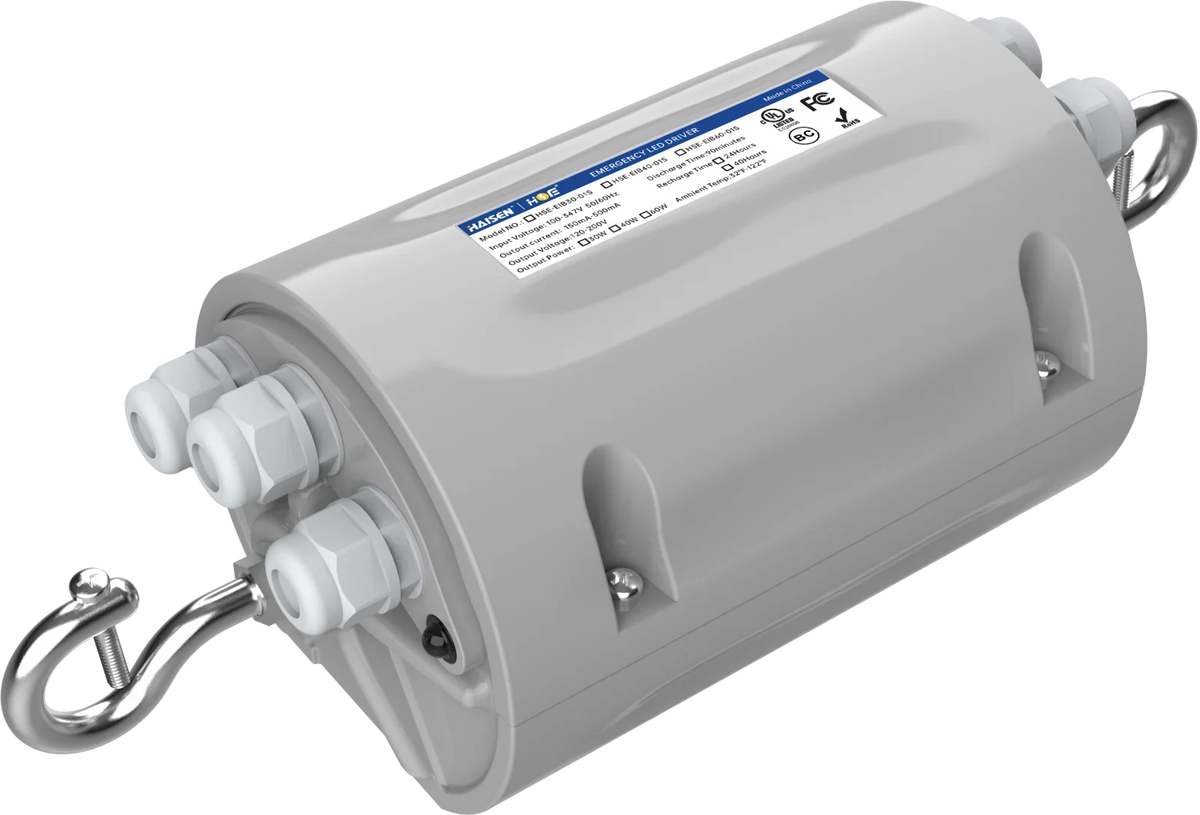

HSE Emergency LED Driver with J-Box, 30–60 W — photo 1

HSE Emergency LED Driver with J-Box, 40 W

$169.99

A supply-line emergency LED driver, 30, 40 or 60 W, with a built-in junction box; it hangs between the ceiling and the luminaire and connects to the lamp without opening the fixture.

UL listed for field or factory installation; CEC Title 20 compliant; complies with the NFPA 101 Life Safety Code.
No need to open the luminaire — connects to the LED lamp directly through the built-in junction box.
Hangs from a ceiling mounting hook and carries the luminaire on its own hook (fixture weight less than 20 kg / 44.09 lbs).
With an HSE sensor on the fixture, the emergency driver bypasses the sensor in an outage and keeps the light 100% on for more than 90 min.
2-in-1 LED test switch and indicator; monthly and annual self-testing; manual testing by optional remote control.
5-year limited warranty.

Key specifications

Input	100–347 V AC
Output	120–200 V DC
Emergency power	30 / 40 / 60 W
Emergency duration	90 min
Battery	Li-ion
Warranty	5 years

Electrical

Input voltage	100–347 V AC, 50/60 Hz
Input current	0.15 A max
Input power	12 W max
Power factor	0.6 @ 100 V AC, 0.5 @ 347 V AC
Output voltage	120–200 V DC, 250 V max
Hook-up	Supply line — connects to the LED lamp directly
Compatible LED luminaires	30 W model: 30–240 W with 0–10 V dimming · 40 W model: 40–350 W with 0–10 V dimming · 60 W model: 60–500 W with 0–10 V dimming

Battery & emergency

Emergency power	30 / 40 / 60 W
Emergency duration	90 min
Battery	Li-ion
Battery capacity	30 W: 14.4 V / 5200 mAh · 40 W: 14.4 V / 6600 mAh · 60 W: 14.4 V / 9900 mAh
Recharge time	30 W, 40 W: 24 h
Self-test	Monthly: 30 s, every 30 days · Annual: more than 90 min, every 12 months
Test switch	2-in-1 LED test switch and indicator light; signal receiver on a separate lead
Remote control	Optional — manual, monthly and annual tests; Bluetooth reset
Bluetooth	-B models

Environment

Ambient temperature	0–50 °C (32–122 °F)

Mechanical

Housing	Built-in junction box; 1/2" NPT conduit entries (3 on one end, 2 on the other)
Mounting	Hangs from a ceiling mounting hook, with safety rope; the luminaire hangs from the driver's M10 hook (fixture less than 20 kg / 44.09 lbs)
Wiring	AC input, AC output to the LED driver, 0–10 V dimming in and out, 12 V DC sensor wires
Accessories	2 M10 hooks, safety rope, 20 wire nuts, 5 waterproof connectors; remote control optional
