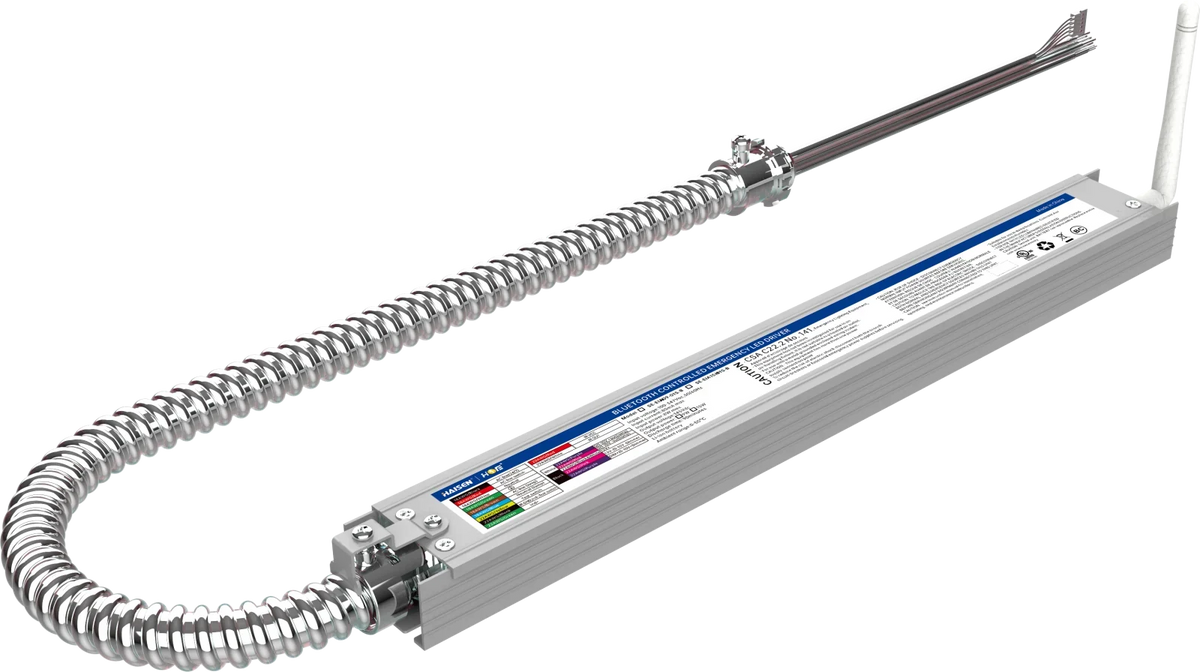

HSE Emergency LED Driver, Supply-Line, 9–40 W
$69.99
A supply-line (AC) emergency LED driver with 9–40 W constant emergency power for most 9–350 W LED luminaires, in regular and Bluetooth versions.
- UL listed for field or factory installation; CEC Title 20 compliant; complies with the NFPA 101 Life Safety Code.
- Constant emergency output power for most 9–350 W LED luminaires.
- The 0/1–10 V dimming wires must be connected when the luminaire power is higher than the emergency power.
- 2-in-1 LED test switch and indicator light included; manual testing by optional remote control.
- Monthly and annual self-testing, with battery overcharge, over-discharge, output overload, short-circuit and open-load protection.
- 5-year limited warranty.
Key specifications
| Input | 100–347 V AC |
|---|---|
| Output | 145 V DC |
| Emergency power | 9 / 15 / 25 / 32 / 40 W |
| Emergency duration | 90 min |
| Battery | Lithium |
| Warranty | 5 years |
Electrical
| Input voltage | 100–347 V AC, 50/60 Hz |
|---|---|
| Input current | 0.15 A max |
| Input power | 12 W max |
| Power factor | 0.6 @ 100 V AC, 0.5 @ 347 V AC |
| LED load input | 6 A max (AC) |
| Output voltage | 145 V DC |
| Hook-up | Supply line (AC) |
| Compatible LED luminaires | 9 W model: 9–80 W with 0–10 V dimming or 3–8 W without · 15 W model: 15–120 W with 0–10 V dimming or 6–14 W without · 25 W model: 25–200 W with 0–10 V dimming or 10–24 W without · 32 W model: 32–300 W with 0–10 V dimming or 10–31 W without · 40 W model: 40–350 W with 0–10 V dimming or 10–39 W without |
Battery & emergency
| Emergency power | 9 / 15 / 25 / 32 / 40 W, constant output power |
|---|---|
| Emergency duration | 90 min |
| Battery | Lithium |
| Battery capacity | 9 W: 14.4 V / 1800 mAh · 15 W: 14.4 V / 2600 mAh · 25 W: 14.4 V / 4400 mAh · 32 W: 14.4 V / 5200 mAh · 40 W: 14.4 V / 6600 mAh |
| Recharge time | < 24 h |
| Self-test | Monthly: 30 s, every 30 days · Annual: 90 min, every 12 months |
| Test switch | 2-in-1 LED test switch and indicator light (test plate with infrared receiver) |
| Remote control | Optional — manual, monthly and annual tests; Bluetooth reset |

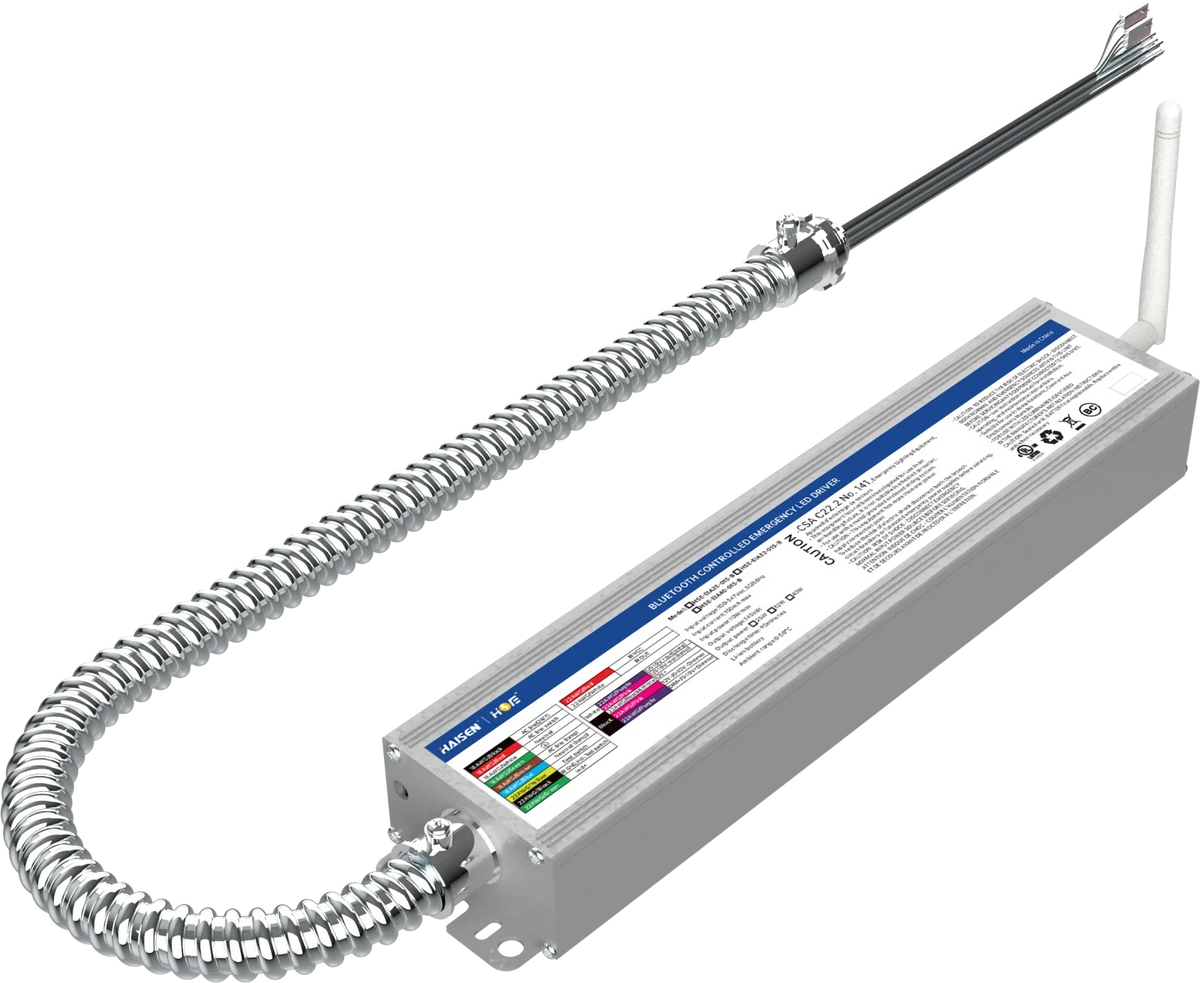

| Bluetooth | -B models |
Environment
| Ambient temperature | 0–50 °C (32–122 °F) |
|---|---|
| Locations | Damp locations and plenum spaces |
Mechanical
| Size | 9 / 15 W: 14.6 × 1.62 × 1.43 in (371 × 41.4 × 36.4 mm) · 25 / 32 / 40 W: 12.24 × 2.59 × 1.53 in (311 × 66 × 39 mm) |
|---|---|
| Wiring | AC input, AC output to the LED driver, 0/1–10 V dimming in and out, 12 V DC sensor lead |
| Accessories | Test plate (infrared receiver, LED indicator and test button), wire nuts, screws; remote control optional |
Compliance
| Marks | cULus Listed E528696 · CEC Title 20 · NFPA 101 |
|---|---|
| Listing | UL listed for field or factory installation |
Warranty
| Warranty | 5 years, limited |
|---|
Marks: cULus Listed E528696 · CEC Title 20 · NFPA 101
Install by a qualified electrician in accordance with the National Electrical Code and local codes.
