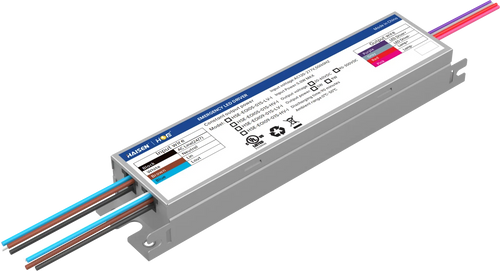

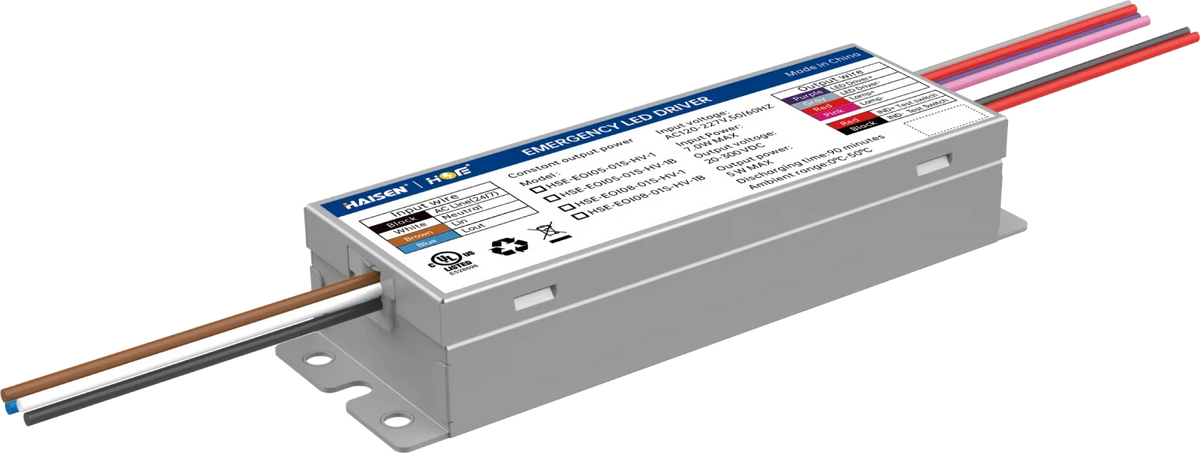

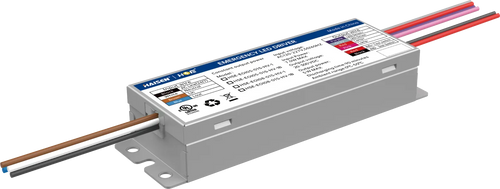

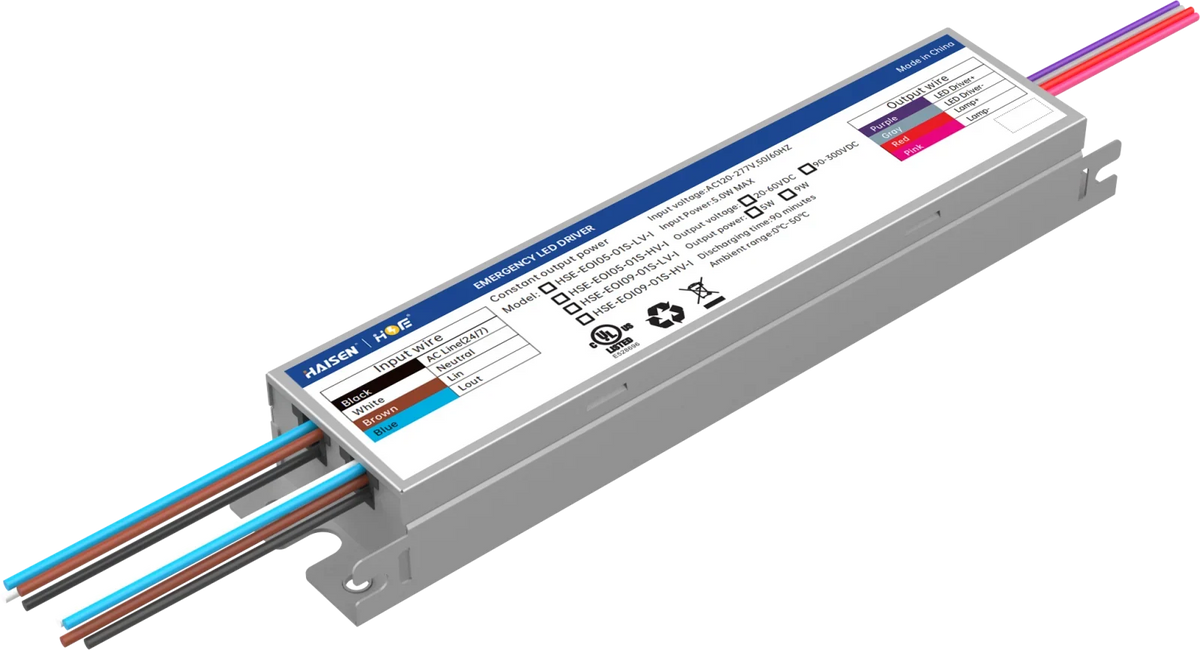

HSE Emergency LED Driver, 120–277 V, 8 / 11 W
HSE-EOI08-01S-HV-I-1 · 8 W · HV (300 V DC max)
$46.99
Skip to product information
HSE Emergency LED Driver, 120–277 V, 8 / 11 W
$46.99
A constant-power emergency LED driver for LED hook-up on 120–277 V AC, 4–16 W, with 20–54 V DC or up-to-300 V DC outputs, in five housing versions.
- Constant power output with high precision and a wide output-voltage range.
- LLV (20–54 V DC) and HV (300 V DC max) output versions.
- Five housings: -D (with plug-in battery pack), -I, -I-1, -P (with flexible conduit) and EOI05.
- Protection against battery overcharge and over-discharge, output overload, short circuit, open load and no load.
- Monthly and annual self-inspection; remote control and Bluetooth (-B) versions.
Key specifications
| Input | 120–277 V AC |
|---|---|
| Output | 20–54 V DC or 300 V DC max |
| Emergency power | 4–16 W |
| Emergency duration | ≥ 90 min |
| Battery | Lithium or LiFePO4 |
| Control | Remote or Bluetooth |
Electrical
| Input voltage | 120–277 V AC, 50/60 Hz |
|---|---|
| Input current | 0.08 A max |
| Input power | < 7 W (-I-1: 7 W max) |
| Power factor | 0.6 @ 120 V AC, 0.5 @ 277 V AC |
| Output voltage | LLV: 20–54 V DC · HV: 300 V DC max |
| LED driver output current | -I-1: 3 A max |
| Max. load | Per model — see models |
| Hook-up | LED (between the LED driver and the LED array) |
Battery & emergency
| Emergency power | 4 / 5 / 8 / 9 / 11 / 12 / 16 W |
|---|---|
| Emergency duration | ≥ 90 min |
| Battery | Lithium; LiFePO4 on the -I-2 models (EOI04 in the -I-1 housing, EOI08 in the -I housing) |
| Battery capacity | Per model — see models |
| Recharge time | 24 h |
| Self-test | Monthly: 30 s, every 30 days · Annual: 90 min, every 12 months |
| Test switch | Regular plastic test button (standard) or waterproof test button (optional); -P: test plate |
| Remote control | Listed as an accessory for -D, -I, -I-1 and EOI05 (infrared receiver) |
| Bluetooth | -B models |
Environment
| Ambient temperature | -D, -P, EOI05 and -I Lithium: 0–50 °C (32–122 °F) · -I-1 LiFePO4: 0–60 °C (32–140 °F) |
|---|
Mechanical
| Size | -D: 7.55 × 0.98 × 0.8 in (192 × 25 × 20.5 mm), plus plug-in battery pack · -I: 7.67 × 1.65 × 1.02 in (195 × 42 × 26 mm) · -I-1: 5.31 × 1.69 × 0.98 in (135 × 43 × 25 mm) · -P: 15.94 × 0.98 × 0.8 in (405 × 25 × 20.5 mm), 9.84 in (250 mm) conduit · EOI05: 6.14 × 1.26 × 0.98 in (156 × 32 × 25 mm) |
|---|
Compliance
| Marks | cULus Listed E528696 (-D, -I, -P, EOI05) · cULus Listed, no file number printed (-I-1) |
|---|
Warranty
| Warranty | 5 years |
|---|
Marks: cULus Listed
Install by a qualified electrician in accordance with the National Electrical Code and local codes.
Full specifications: https://www.haisensz.com/products/hse-eoi/. Buying 10 or more? Request a project quote.
