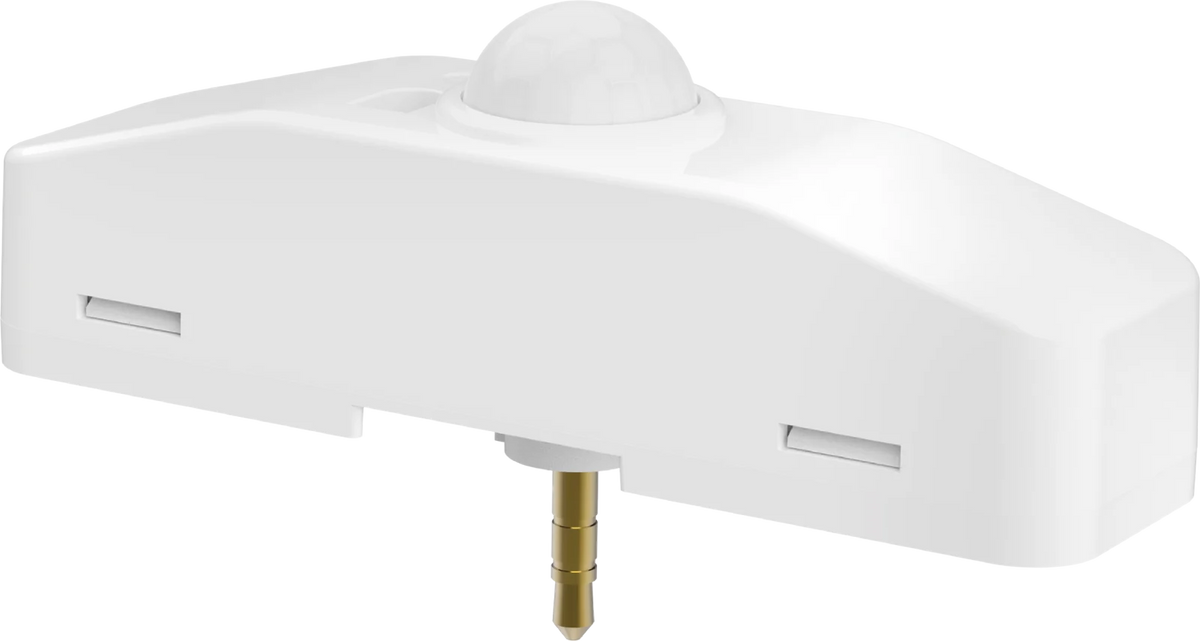

HSE Integrated PIR Sensor, 2.5 mm Jack (pack of 5)

$54.99

A slim integrated PIR sensor with a 2.5 mm audio jack that enables luminaire-level lighting control (LLLC), with daylight harvesting and a photocell function.

Integrated slim sensor that enables luminaire-level lighting control (LLLC) for panel, track, strip, wrap and select architectural fixtures.
Combines PIR occupancy sensing with daylight harvesting and a dusk/dawn (photocell) function.
0–10 V dimming through a 2.5 mm audio jack.
Bluetooth version configured in the HSE WISE app; regular version with remote control HD06R (purchased separately).
5-year warranty.

Key specifications

Input	10–15 V DC
Sensor	PIR
Max height	< 4 m (13 ft)
Detection range	2–4 m (6.56–13.12 ft) radius
Connection	2.5 mm audio jack
Warranty	5 years

Electrical

Input voltage	10–15 V DC
Input current	< 15 mA
Standby power	< 0.5 W @ 10 V DC
Control method	0–10 V dimming

Detection

Sensor type	PIR
Lens	Fresnel lens
Detection angle	360° (ceiling mounted) · ≤ 120° (wall mounted)
Max mounting height	< 4 m (13 ft)
Detection range	2–4 m (6.56–13.12 ft) radius
Functions	Daylight harvesting · dusk/dawn (photocell)

Settings — regular version

Control device	Remote control HD06R (purchased separately)
Warm-up period	10 s
Detection area	25% / 50% / 75% / 100%
Hold time	5 s / 30 s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min
Daylight threshold	2 lux / 10 lux / 30 lux / 50 lux / 80 lux / 120 lux / 200 lux / 250 lux / 300 lux / 350 lux / 400 lux / Disable
Standby dimming level	10% / 20% / 30% / 50%
Standby period	0 s / 10 s / 30 s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞

Bluetooth version

Control	HSE WISE app
Bluetooth range	30 m (98 ft)
Radio frequency	2.4 GHz (2402–2480 MHz)
Bluetooth version	5.4
Detection area	High / Medium / Low
Max dim level	1–100%, continuously adjustable
Hold time	5 s / 30 s / 1–120 min (1 min steps)
Standby dimming level	1–100% (1% steps)
Standby period	0 s / 5 s / 30 s / 1–120 min (1 min steps) / ∞
Daylight threshold	Disable / 50–2000 lux (50 lux steps)
Manual dimming	10–100% in manual mode, 60–100% in sensor mode

Environment

Operating temperature	−30 °C to +60 °C
IP rating	IP20

Mechanical

Connection	2.5 mm audio jack
Size	67.5 × 18.5 × 23.1 mm (2.66 × 0.73 × 0.91 in)
Height incl. jack plug	35.7 mm (1.41 in)

Compliance

Marks	cURus Recognized E529048 · FCC · CE · RoHS · IP20

Warranty

Warranty	5 years

Marks: cURus Recognized E529048 · FCC · CE · RoHS · IP20

Install by a qualified electrician in accordance with the National Electrical Code and local codes.

Full specifications: https://www.haisensz.com/products/hse-sp5l-2a/. Buying 10 or more? Request a project quote.
